Web Services is
service which is available over the web. A Web Service is used to implement the specific
functionality to Execute the business logic codes of the application . This
technologies allowed to developer to create a specific component once
(make only logic code) so that they can share it across the multiple
application by multiple developers. Before the Web Services , we were using two
technology which are given below:
· Component object model (COM)
· Distributed Component object model (DCOM)
This technology is helpful to use one application to another
application. Web Services overcome these
difficulties as they can be shared (distributed) among multiple website without
the need to install them on each individual client machines.
There
are some advantages of web services over COM and DCOM Technologies.
· Web Services are very simple in use.
· Web Services do not carry any state information,so that multiple
request can be processed simultaneously.
· Web Services are enforcing trusted connection between
the server and the client.
Examples of Web
Services
1). Preparing the pay slip for employee by a company
3. )
Display
the weather report on the website
4. ) Calculate the simple interest and income tax of
the banks and income tax departments.
5. ) Display the New News (Notification) Headlines
on the website.
we
can use different website (asp.net ,php, java, etc) and different web services
for performing any task. We can use any web services in different platform.Web
services are used XML language for communication to the website .You
already know XML is platform independent .
1. 1 )
HTTP :- It is known as Hyper Text Transfer
Protocol .All Internet protocols follow some rules.It is a connection less
protocol.This protocol is used to transmit the data between web services and it
users (website).
2. 2 )
XML :- It is known as Extensible Markup
Language.It is a standard used by all web services to transfer the data.It is
platform independent.So that e can use web services on any website without
facing platform compatibility problem.
3.
3. )
WSDL :- It is
Known as Web Service Description Language.It is a standard used by the web
service to describe what a web service can do. WSDL is a XML-based language
that defines web services.
There are some elements in WSDL Document which are
given below:-
1.Type :- It describe the all data
types used in web service.
2.Message :- It is describe the
message which are used to communicate from one point to another when data
is passed by the web service
3.Binding : - It describes the all
protocols which are used by the web service
4.Port Type :- It describes the links of
input and output message
5.Port :- It describe the address
for binding the specific client port (end user port).
6.Service :- It describes all services
such as binding URL ,Port etc.
1. 4 ) SOAP :-It is known as Simple object access protocol.It is a
standard used by the web service to send the response (or request) message to
the application (website).It is completely XML based protocol.SOAP provides a
complete set of rules for messaging.One of the great advantage of using a
SOAP message is that ,it is not restricted to any one operating system.
2. 5 ) DISCO.exe :- It is known as the web service
discovery tool,It is used for publishing and discovering web services.This tool
is helpful to discover URL of all the web services located on a web server and
creates a list of them in a file,called DISCO file (with .disco extension).
6. )
UDDI :- It is known
as Universal Description,Discovery and Integration .UDDI includes four types of
services.
· Web service
· Business
· Binding
· Specifications
UDDI is a
central Directory where web services offered by different organization are
published.It is Built into the .net platform.It is platform Independent.
eatures of UDDI
· It stores the information of web services.
· It uses W3C & IETF standards (ex. XML,HTTP,DNS etc.).
· It uses SOAP for communication.
· It uses WSDL to describe interfaces to web services.
Advantages of Web Services
· It enhance the security feature of any website.
· It takes less processing time to calculate the logic code.
· It can easily handle multiple request at a time simultaneously.
· It is compatible to communicate with different platform.
· It follows XML ,HTTP Standards.
Step -1 First
open your visual studio --> File -->New -->Select ASP.NET Empty
Website and select Visual C# from
left window -->OK-->Now Open Solution Explorer-->Now Right click on
website --> Add New Items --> Select web
service & Visual
C# --> Write your web service's name
(calculationservices.asmx) --> click Add button as shown below:-
Step -2 Now Write the C# logic codes for calculation
under [WebMethod] as given below:-
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Services;
/// <summary>
/// Summary description for calculationService
/// </summary>
[WebService(Namespace
= "http://tempuri.org/")]
[WebServiceBinding(ConformsTo
= WsiProfiles.BasicProfile1_1)]
// To allow this Web Service to be
called from script, using ASP.NET AJAX, uncomment the following line.
//
[System.Web.Script.Services.ScriptService]
public class calculationService : System.Web.Services.WebService {
public calculationService () {
//Uncomment the following line if using designed components
//InitializeComponent();
}
[WebMethod]
public string
HelloWorld() {
return "Hello
World";
}
[WebMethod]
public int add(int i, int j)
{
return i + j;
}
[WebMethod]
public int substract(int i, int j)
{
return i - j;
}
[WebMethod]
public int multiply(int i, int j)
{
return i * j;
}
[WebMethod]
public int Division(int i, int j)
{
return i / j;
}
}
Step -3 Now Run this web services (calculationservices.asmx)
-->Now copy the Browser's URL as shown below:-
Step -4 Now
you can calculate your services(Addition,Subtraction,Multiplication,Division
and modulus ) -->click Division link or others as show below:-
Step -5 Now
click Invoke Button -->you will see ,output will show in XML Document format
using SOAP Protocol
Note :-
You can calculate (test) all result using this method, your service is
working or not.

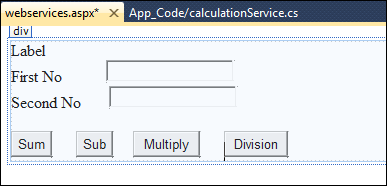

Step -6 Now open
your visual studio again--> File -->New -->Select ASP.NET Empty
Website and select Visual C# from left window
-->OK-->Now Open Solution Explorer-->Now Right click on website -->
Add New Web Form (webservice.aspx) --> Drag and drop Label ,Text Box and
Button control on the Form as shown below:-
Note :-
· web service extension --> .asmx
· Web Form Extension -->.aspx
· Disco File Extension -->.disco
Step -8 Now Write the web service'Name (myservice)
-->Click Add Reference Button.
as shown below :-
Step -9 You will see ,there are some files are added in
your application(when we complete the web service configuration) as shown
below:-
Note:- See above image carefully:-
· Include a Name space in webservice.aspx.cs file as Using
myservice;
·Create object of calculationservices in webservice.aspx.cs file
as calculationservices obj = new calculationservices();
Step -10 Now write the c# codes on button click in webservice.aspx.cs file
as given below:-
using System;
using myservice;
public partial class myservices :
System.Web.UI.Page
{
calculationService obj = new
calculationService();
protected void
Page_Load(object sender, EventArgs e)
{
}
protected void
Button1_Click(object sender, EventArgs e)
{
int sum = obj.add(Convert.ToInt32(TextBox1.Text),
Convert.ToInt32(TextBox2.Text));
Label1.Text = "Your addition Result
=" + sum.ToString();
}
protected void
Button2_Click(object sender, EventArgs e)
{
int sub = obj.substract(Convert.ToInt32(TextBox1.Text),
Convert.ToInt32(TextBox2.Text));
Label1.Text = "Your Substraction Result
=" + sub.ToString();
}
protected void
Button3_Click(object sender, EventArgs e)
{
int mult = obj.multiply(Convert.ToInt32(TextBox1.Text),
Convert.ToInt32(TextBox2.Text));
//Response.Write("<script> alert(" + mult +
")</script>");
Label1.Text = "Your Multiplication
Result =" + mult.ToString();
}
protected void
Button4_Click(object sender, EventArgs e)
{
int div = obj.Division(Convert.ToInt32(TextBox1.Text),
Convert.ToInt32(TextBox2.Text));
Label1.Text = "Your Divison Result
=" + div.ToString();
}
}
Step -11 Now Run the Application (webservice.aspx) (press F5)
-->Enter the Text Box Fields -->press each
button( Add, Subtract......... )as shown below:-
